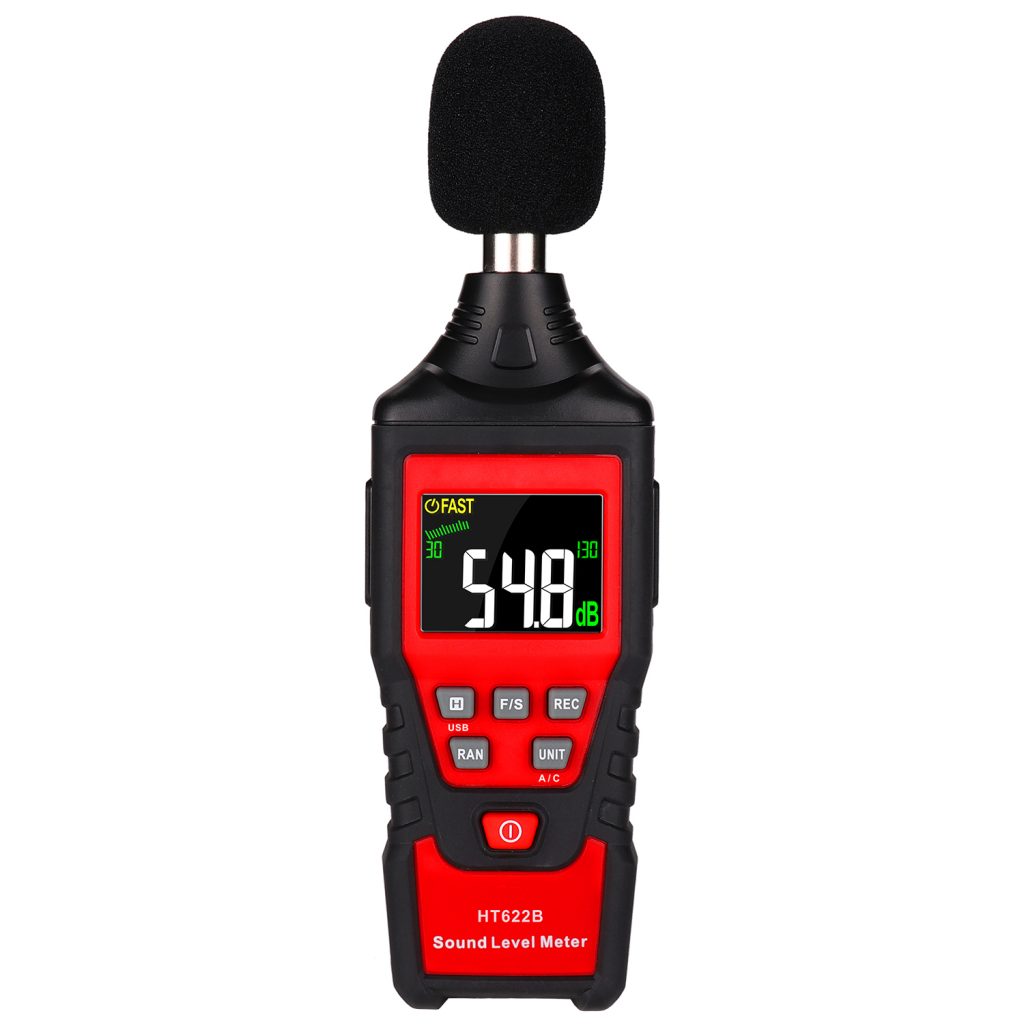

Digital Sound Level Meter, A/C Frequency Weighting Decibel Meter with USB Data Logger 30-130dB(A/C) Range Max/Min/Data Hold, Fast/Slow Mode ect.
This sound level meter is a great tool for checking, monitoring or controlling the sound level of any environments. It is widely applicable for personal, families, business, studies, industrial and etc.
Decibel meter measures range from 30-130 dB with frequency range from 30hz to 8Khz. Highly accurate with Max±1.5dB.
Decibel Meter with A/C Frequency weighting seletable can meet your need accurately . A Weighting commonly use for environmental and conservation program such as OSHA regulation testing and noise ordinance law enforcement. C Weight for the sound level analysis of machines engines,ect.
Use USB Data Logger: Download and install the Software for SoundMeter in your PC (CD Software Provided). Turn on the sound meter and connect it to PC via USB cable. Press and hold “H” button for 2 seconds to activate USB function, till “USB” appears in the meter display. In Software, click “Start”, and then real time data will shown. Click “Stop” and then you can export the data easily.
Sound level meter is used to measure the sound level of the environment: such as factories, workshops, school, residential buildings, office areas, traffic roads, audio and other occasion of the sound level. It’s also suitable for noise engineering, product quality control, health prevention and control,etc.
Decibel Meter (also known as a “”sound pressure level meter”” SPL) is compact and easy to use while providing you accurate readings in a greater range than similar inexpensive sound meters on the market! Our this sound level meter can read between 30~130dBA/dBC(option), while reducing the effects of wind noise to produce more accurate readings.
Display: LCD Display
Range: 30-130dBA; 30-130dBC(option)
Accuracy : ±1.5dB(94dB@1KHz);±5dB(94dB@8KHz)
Frequency weighting: A weighting; C weighting(option)
Time weighting: Fast: 125ms; Slow:1sec

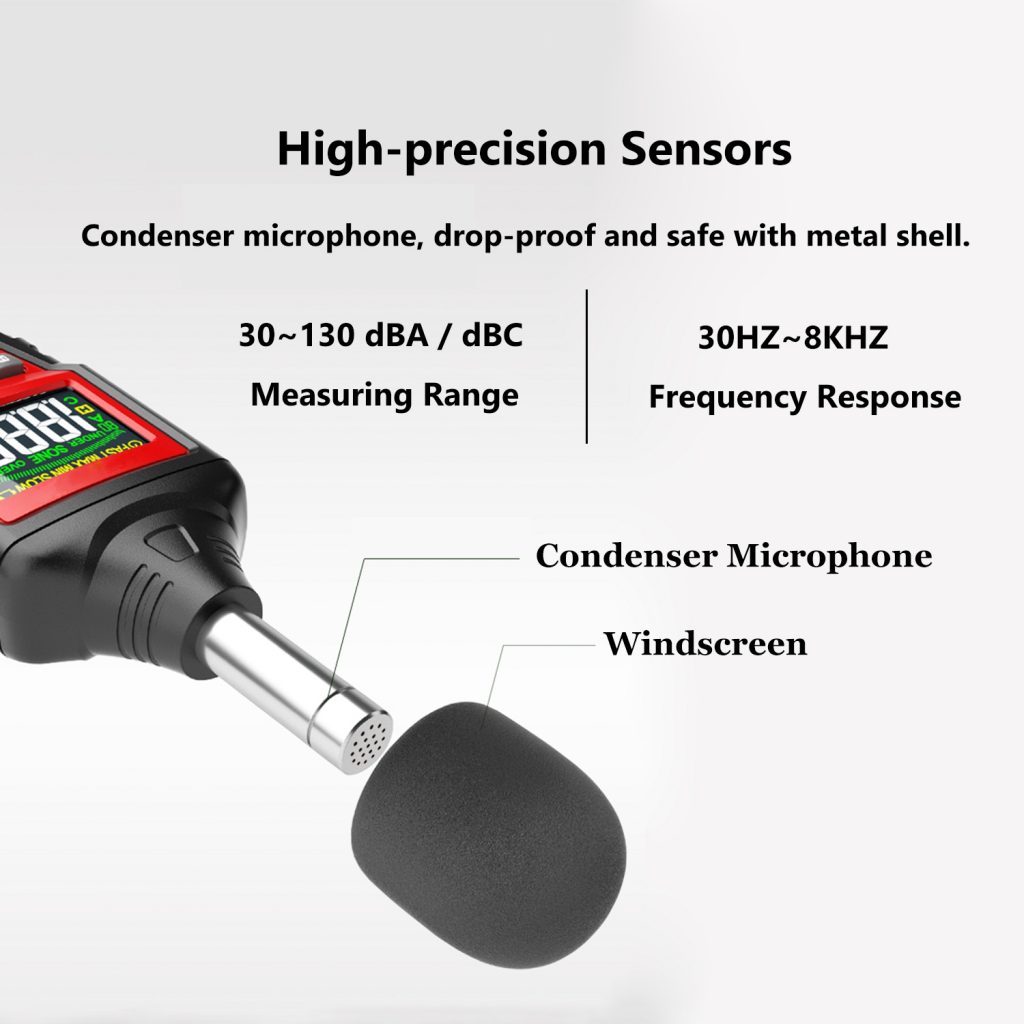

Microphone: Electret condenser
Operating conditions: 0 – 40°C, <80% RH
Storage conditions: -10°C – 50°C, <80% RH
Auto Power off: 10 minutes
Power: 3 x 1.5V AAA batteries (Not Include)

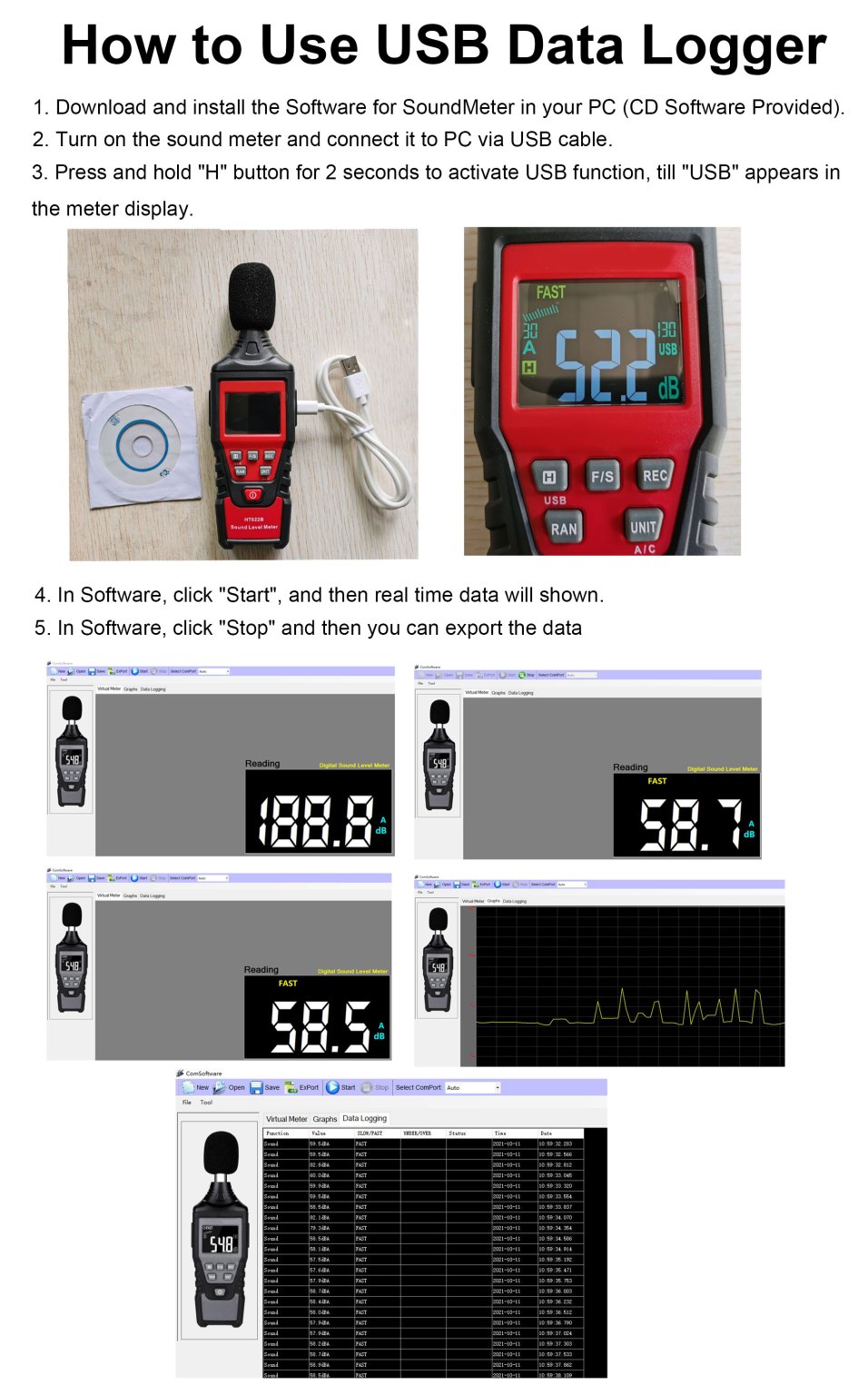

How to Use USB Data Logger:
1. Download and install the Software for SoundMeter in your PC (CD Software Provided).
2. Turn on the sound meter and connect it to PC via USB cable.
3. Press and hold “H” button for 2 seconds to activate USB function, till “USB” appears in the meter display.
4. In Software, click “Start”, and then real time data will shown.
5. In Software, click “Stop” and then you can export the data easily.
1* Sound Level Meter
1* Instruction manual
