IR Illuminator 850nm 6-LEDs IR Infrared Light with Power Adapter for CCTV Camera (90 Degree)

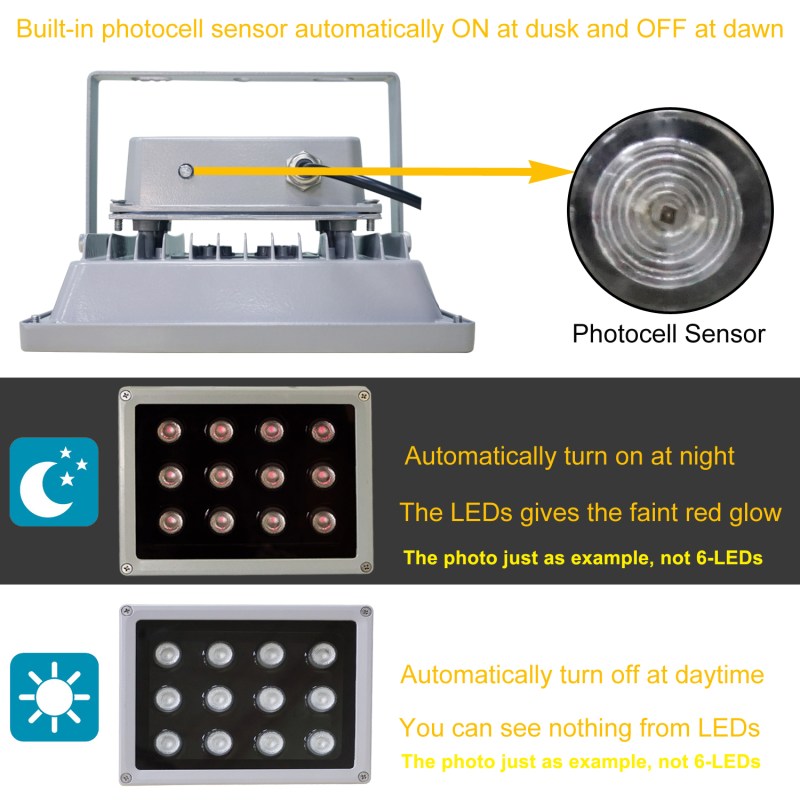

Automatically ON & OFF: Built-in light sensor, the CCTV ir illuminator will be automatically turn on at night or the light is lower than 20 lux and turn off at daytime. For 850nm LED infrared light, after power is on, if you look straightly at the lens of ir illuminator, you could see the faint red glow on each led, but YOU COULD NOT SEE any light emitted from it.
IP67 Dustproof & Waterproof: Rated with IP67 dustproof & waterproof, AUTENS infrared illuminator is ideal for both outdoor and indoor use. Made with high quality aluminum frame and reinforced glass, our ir illuminator is more durable than other ir infrared light.
Wide View Angle: Built-in 6 pcs high power LED array lights, wide view angle. For same quantity of LEDs, when the LED view angle is wider, the IR distance will be shorter. The CCTV ir illuminator helps producing better night vision image, best work with wide angle IP cameras and CCTV cameras. Greatly improve the performance of night vision cameras.

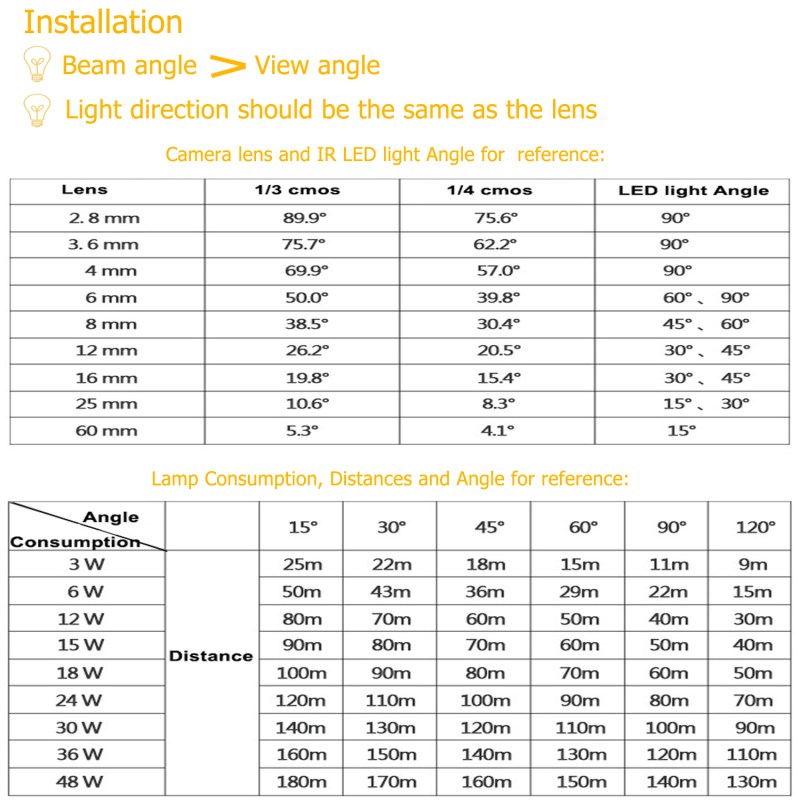

Warm Tips:1. Camera and illuminator should be installed to the same horizontal and vertical direction
2. To protect the sensor, please set the senor head down to avoid direct sun exposure
3. For same quantity of LEDs, when the LED view angle is wider, the IR distance will be shorter
4. The IR distance and view angle are for your reference, the final view distance & angle is depend on your camera lens, please check with our specification chart carefully before buying
5. For 850nm LED infrared light, after power is on, if you look straightly at the lens of ir illuminator, you could see the faint red glow on each led, but YOU COULD NOT SEE any light emitted from itSpecification:IR LEDs: 6 Pcs High Power IR Array LEDs
Housing Material: Aluminum Frame + Reinforced Glass
Type of Infrared Light: 850nm Wavelength
Dustproof & Waterproof Rating: IP67
Power Consumption: 6W
Product Dimensions: 112*83*76mm
Power Input: DC 12V/1A
Working Temperature: -20 ℃ to 55℃
Housing Color: Grey
IR Distance:30 degree – 141ft; 60 degree – 95ft; 90 degree – 72ftPackage:
1 x 6-LEDs IR Illuminator
1 x DC 12V/1A Power Adapter
AU Plug, EU Plug, UK Plug, US Plug
