Socket Tester Plug Circuit Analyzer Power Socket Electric Circuit Polarity Voltage Detector

$ 15.99

Electric Socket Tester-Tester for rapidly detecting whether the socket’s wire connection is correct or not.Design with RCD/GFCI Test Button. Power outlet plug for correct wiring and RCD/GFCI trip function. It can test the protection system to ensure the household electrical safety. Perfect to guard your security against the risk of electric shock.
Bright Led Display-Light patterns are well labeled on the back of outlet tester itself. The Red LED indicators can be light up clearly even in strong sunlight. The tester incorporates a built-in light so it can also be used in the dark. help to read the data clearly.

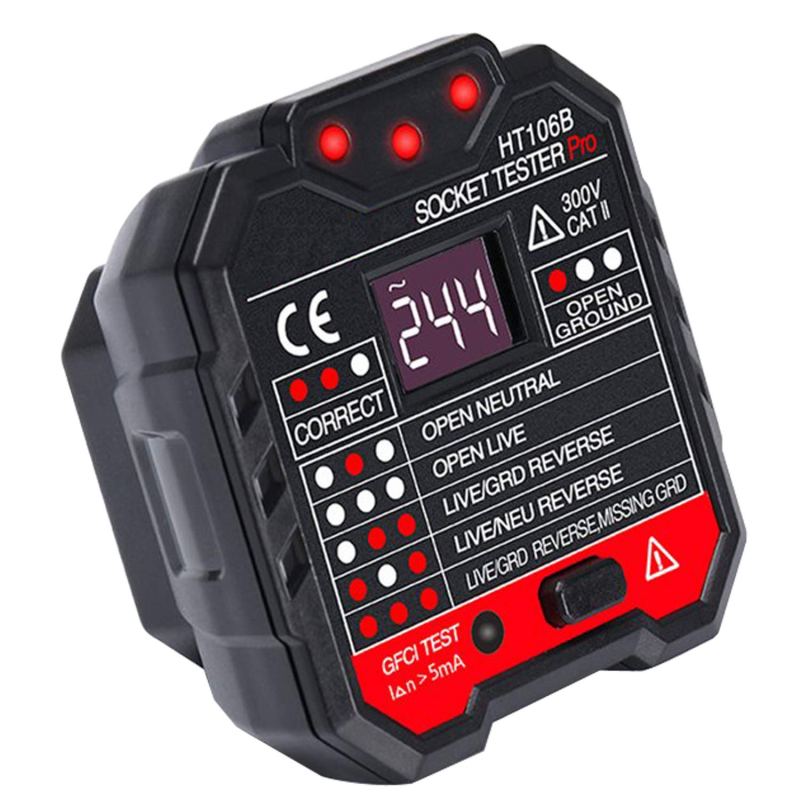

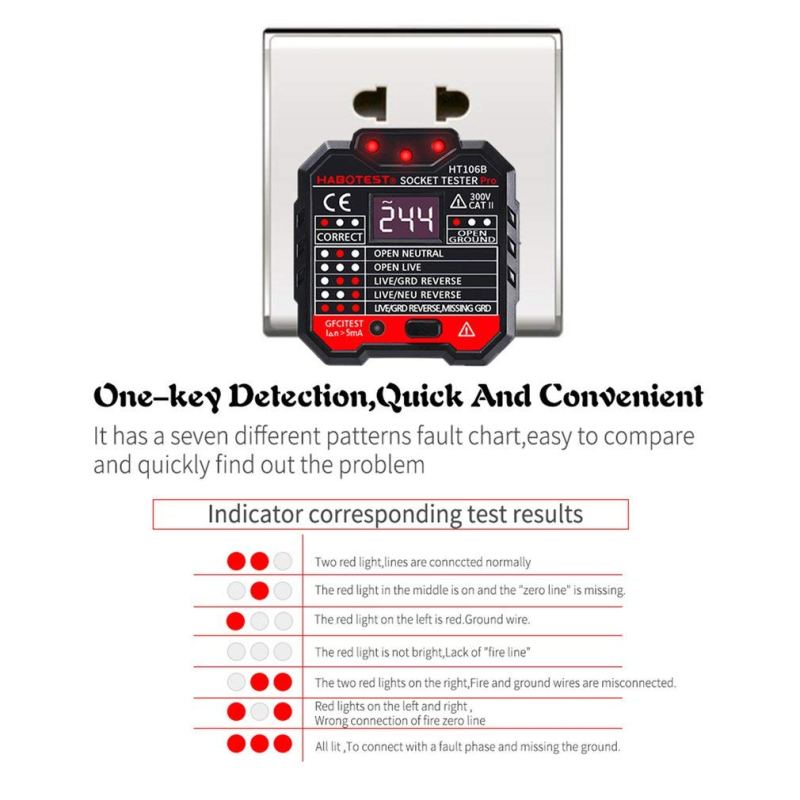

7 LED Light Patterns – With 7 easy to read indicators to indicate the state of the socket, easy to judge: Correct, Open Ground, Open Neutral, Live/Neutral Reverse,Live/Ground Reverse, Open Live & Live Neutral Reverse.
Wide Application – Widely used for electric maintenance testing, office sockets testing, power strips testing and wall sockets testing in school, laboratory, factory and other social field. The socket tester can save a lot of your time to figure out the socket problem.
Portable Design – Compact size, light weight and convenient to use. With backlight LCD display for clearly reading and using on dark place.

US Plug
Clear
Compare
SKU: N/A Category: Tags: ,

Specifications:

Color:Black
Size: 59.5*57*57mm
Material: Flame Retardant ABS
Voltage: 48V-250V 45-65Hz
RCD Test: >30mA
RCD Working Voltage: 220V±20V
GFCI Test: >5mA
GFCI Working Voltage: 110V±20V
Voltage Measurement: 48V~250V / 45~65Hz
Accuracy: ±(2.0%+2)
Working Environment: 0℃ ~ 40℃, 20% ~75%RH
Storage Environment: -10℃ ~ 50℃, 20% ~80%RH
Safety Rating: EN61010-1,-2-030, EN61326-1,CAT II 300V

Package Included:

1 x Socket Voltage Detector
