AC/DC Digital Clamp Meter T-RMS 6000 Counts, Multimeter Voltage Tester Auto-ranging NCV
This digital clamp meter multimeter can accurately measure max 600A DC / AC current, 600V DC / AC voltage, resistance, capacitance, Continuity, temperature, diode and frequency (Hz).A perfect troubleshooting tool that will help you solve electrical problems in the car, industrial or at home quickly and safely.
Digtal backlit LCD display – LED Flashlight, Temperature Measurement for liquids and air conditioning ports, Low Battery Indication, Data Hold, True-RMS, ZERO, Automatic range, SEL fuction, Auto power off after 10 minutes inactivity, Non-Contact AC Voltage Detection,full-range overload protection.
The AC/DC clamp meter has a backlit screen and led flashlight so you can see the readings when working in dim or low-light conditions,like electrical closets, under buildings, behind appliances, and in other enclosed spaces,Convenient LED flashlight illuminates a dimly lit area. Note: When the screen backlight and the flashlight is turned on at the same time, the clamp meter turns the knob switch, the flashlight will be turned off, saving electricity.

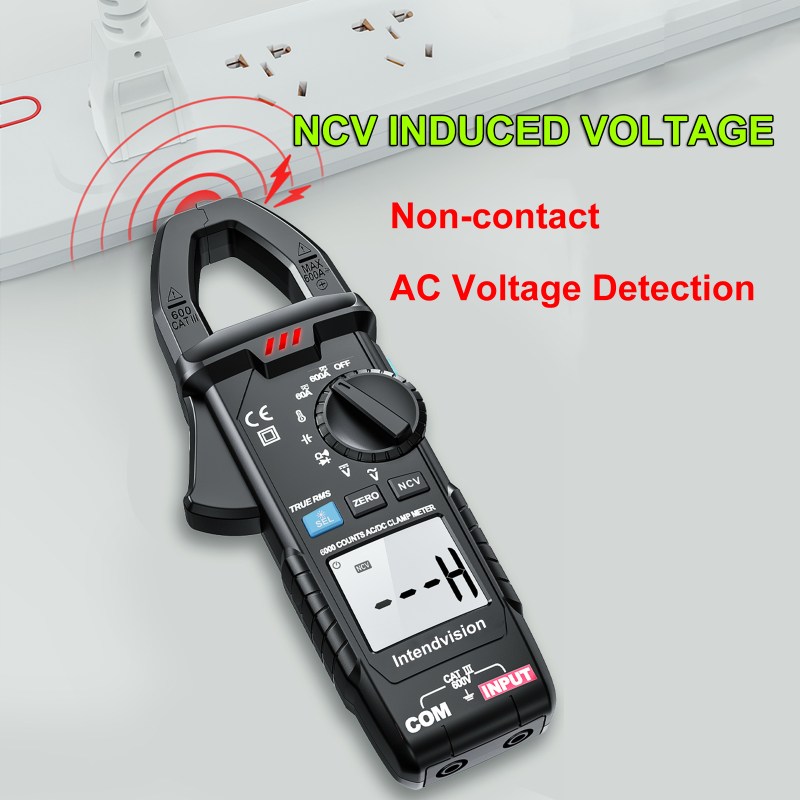

Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage.The NCV non-contact AC voltage detection function can be switched by short pressing the NCV button in any gear.
A multimeter is not only professional electricians and electrical engineers would care about, it is also an indispensable asset to the home toolkit for the experienced do-it-yourself or hobbyist

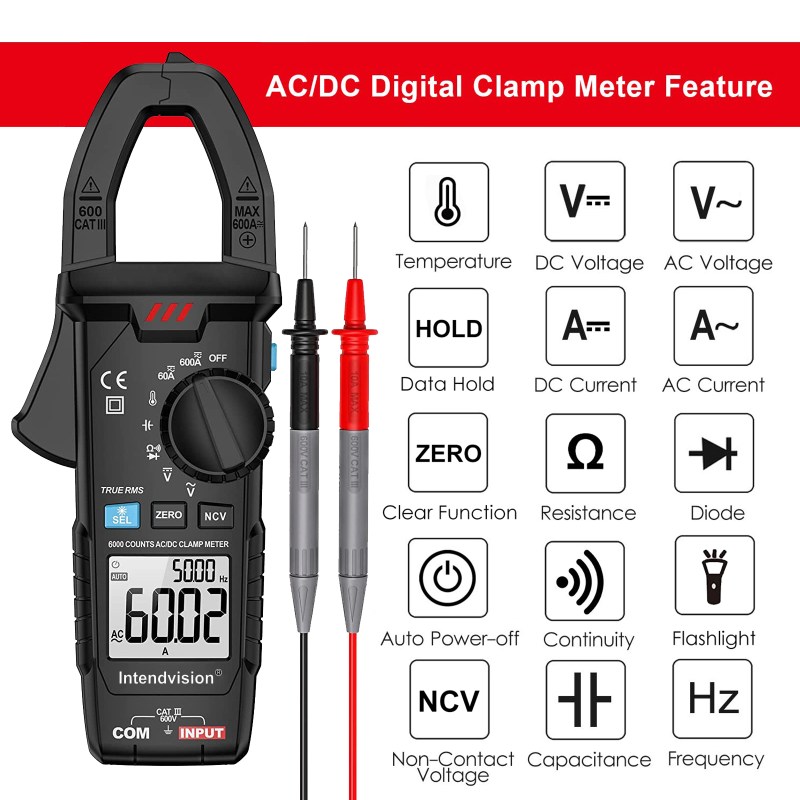

The Digital Clamp Meter with 6000 counts,AC/DC automatic range.it has the functions of data hold, automatic range, temperature measurement, automatic shutdown, backlight, flashlight, full-range overload protection and battery under-voltage indication.
Please measure in the correct way, otherwise the readings will not be accurate.We have attached a operation guide and notes to the manual for reference.
Ensure the accuracy of the measured data.Short press the ZERO button under DC current and capacity mode to clear the base number caused by the electromagnetic interference in the use environment.
The clamp meter can accurately measure
AC Voltage: 6V/60V/600V ±(0.8%+5dgt)
DC Voltage: 600mV/6V/60V/600V ±(0.5%+3dgt)

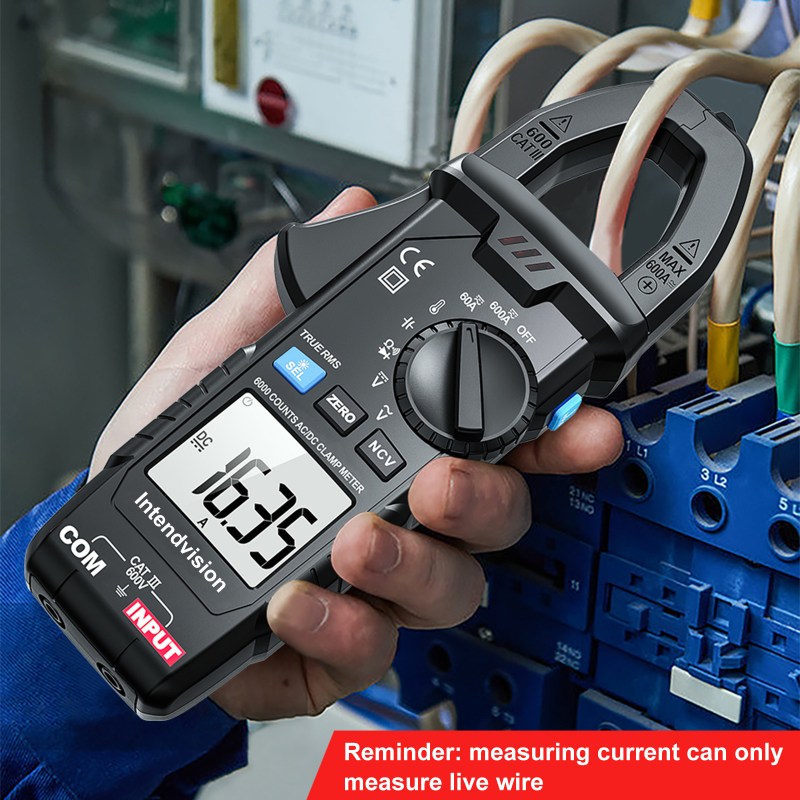

AC Current: 60A/600A ±(3.0%+10dgt)
DC Current: 60A/600A ±(3.0%+10dgt)
Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6mΩ ±(1.0%+3dgt), 60mΩ ±(2.0%+5dgt)
Capacitance: 600nF/6uF/60uF/600uF/6mF/60mF ±(4%+10dgt)

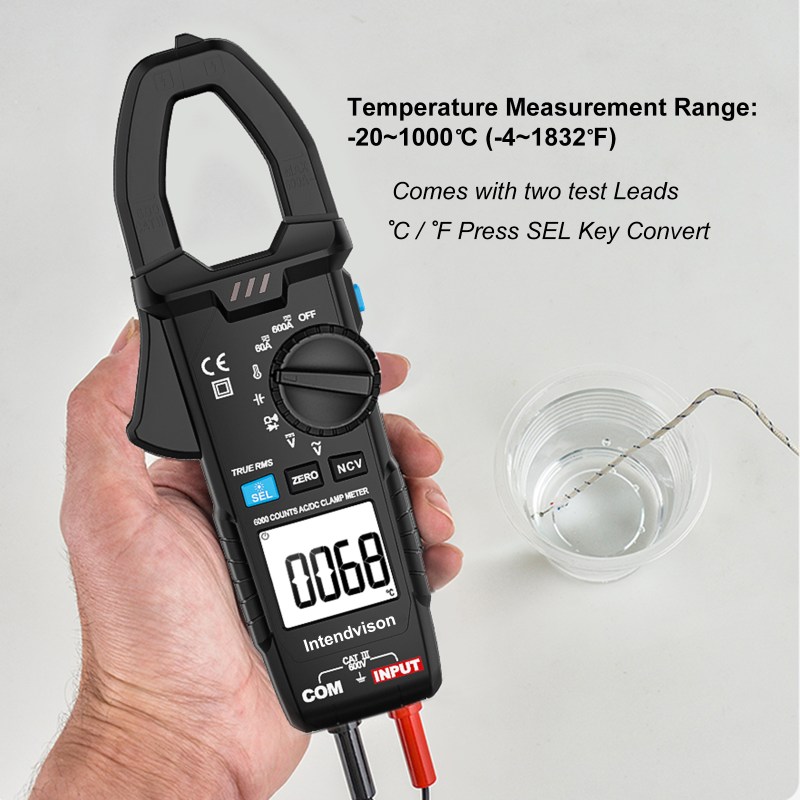

Temperature: -20℃~1000℃ ±(2.0%+2dgt), -4~1832℉ ±(2.0%+4dgt)
Maximum Display Value: 5999

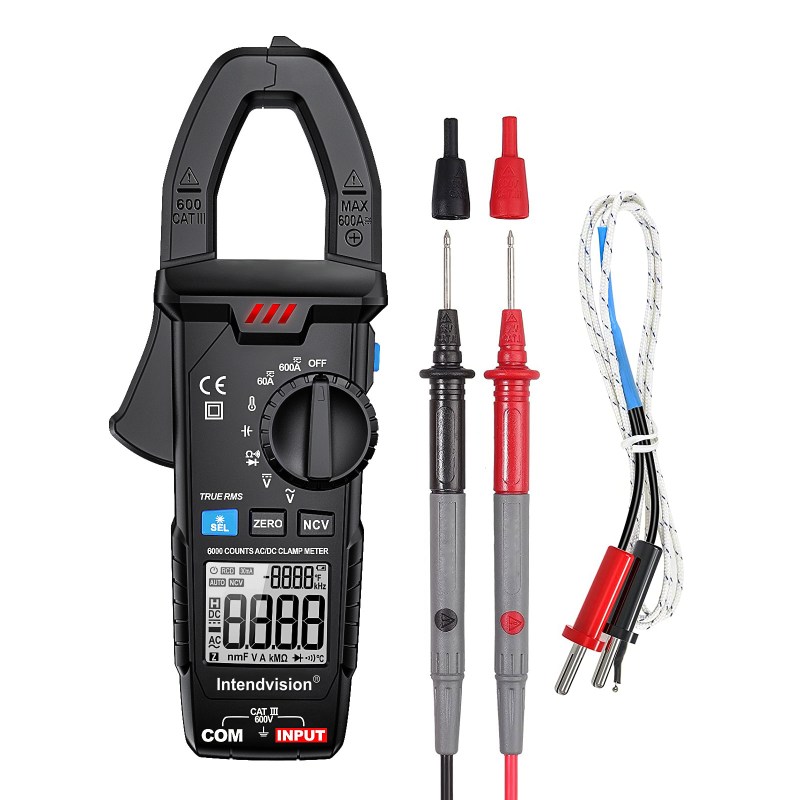

1 x Digital Clamp Meter
1 x Carrying bag
1 x Temperature probe
2 x Test Leads
1 x User Manual
