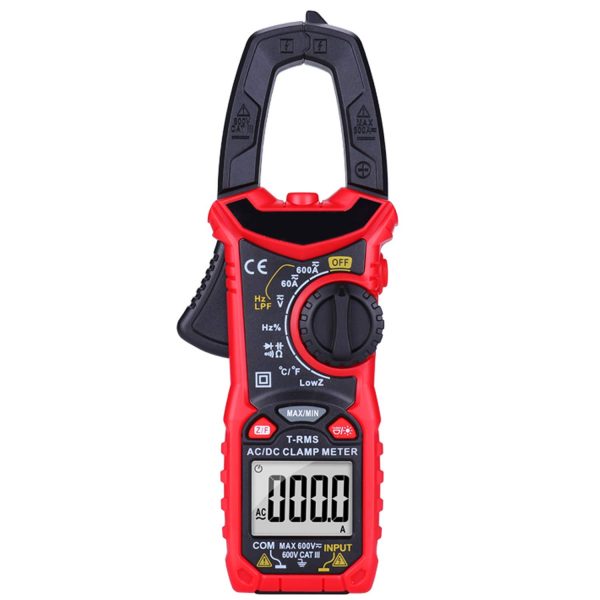

Digital Clamp Meter 1000A AC Current Amp Meter True RMS Auto Range 6000 Counts AC/DC Voltage
True-RMS Clamp Meter: This multimeter can accurately measure AC Current, 1000V AC/DC Voltage, Frequency, Duty Cycle, Resistance, Capacitance, Diode, Continuity and Temperature. DO NOT MEASURE DC CURRENT!
Inrush Current Meter: Knowing the value of inrush current can help you locate a startup problem quickly, whether it’s in the motor or in the starting circuit. The measuring time of inrush current is about 100ms.
NCV Detection & LED Flashlight: Built-in Non-Contact Voltage (NCV) Detector can easily and quickly determine whether there is a voltage. Convenient LED flashlight illuminates a dimly lit area.
Advanced Functions: The Clamp Meter has VFD, LOZ, MAX, MIN, REL, RAN, Date Hold, Low battery display and automatic shutdown. Multi-function clamp meter can satisfy all your needs

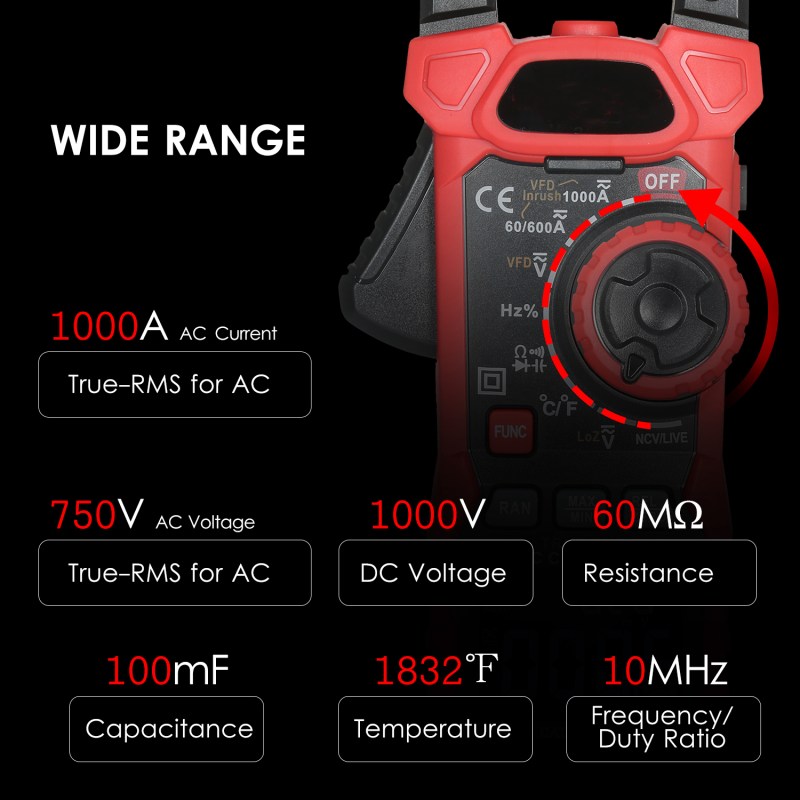

DIGITAL AC CURRENT METE: Measures inrush current, VFD current/voltage, AC current, AC/DC voltage, frequency, duty ratio, resistance, continuity, diode, capacitance, temperature, non-contact AC voltage (NCV) detection, and live detection.
WIDE OPENING JAW: Opening jaw capacity is 40mm, wide enough to measure without disturbing the circuit.
LOUD BEEP: NCV sensor send out audible and visual alarm once received electromagnetic signal.
MORE FUNCTIONS: Features data hold, flashlight, low battery display, Celsius/Fahrenheit degree, Max./Min./Relative value, and Zero(reset) key.
SAFE TO USE: Designed and conforms to IEC61010-1, CAT III 1000V, safe and reliable.
AUTO-OFF: Auto power off within 15 minutes if there is no operation, helps conserve the battery.
MULTI TESTER: Comes with 2 test leads and a thermocouple to be used as a multitester.
Display: 6000 count
Clamp Opening Size: 40mm
Auto-off: approx. 15 minutes
Max. Voltage Between Terminals and Earth Ground: AC750V or DC 1000V
Color: Black and Red
Battery: 3pcs, 1.5V, AAA alkaline battery (batteries not included)
Item Size: 24*8*4.5cm / 9.44*3.14*1.77in
Item Weight: 311g / 10.97oz
Package Size: 27.5*13.5*5.5cm / 10.82*5.31*2.16in
Package Weight: 620g /21.86oz
NCV Detection : Yes
AC Current:0-1000 A
AC Voltage:0-750 V
Auto Power Off:Yes
Low Power Indicator:Yes
