Electric Magnetic Door Lock 12V/24V 60kg 130lbs Mini DC EM Locks Holding Force Electromagnetic for Door Entry Access Control
$16.99 – $18.99
- Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 60KG (130LBS) and significant features.
- Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode.
- Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor.
- Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.

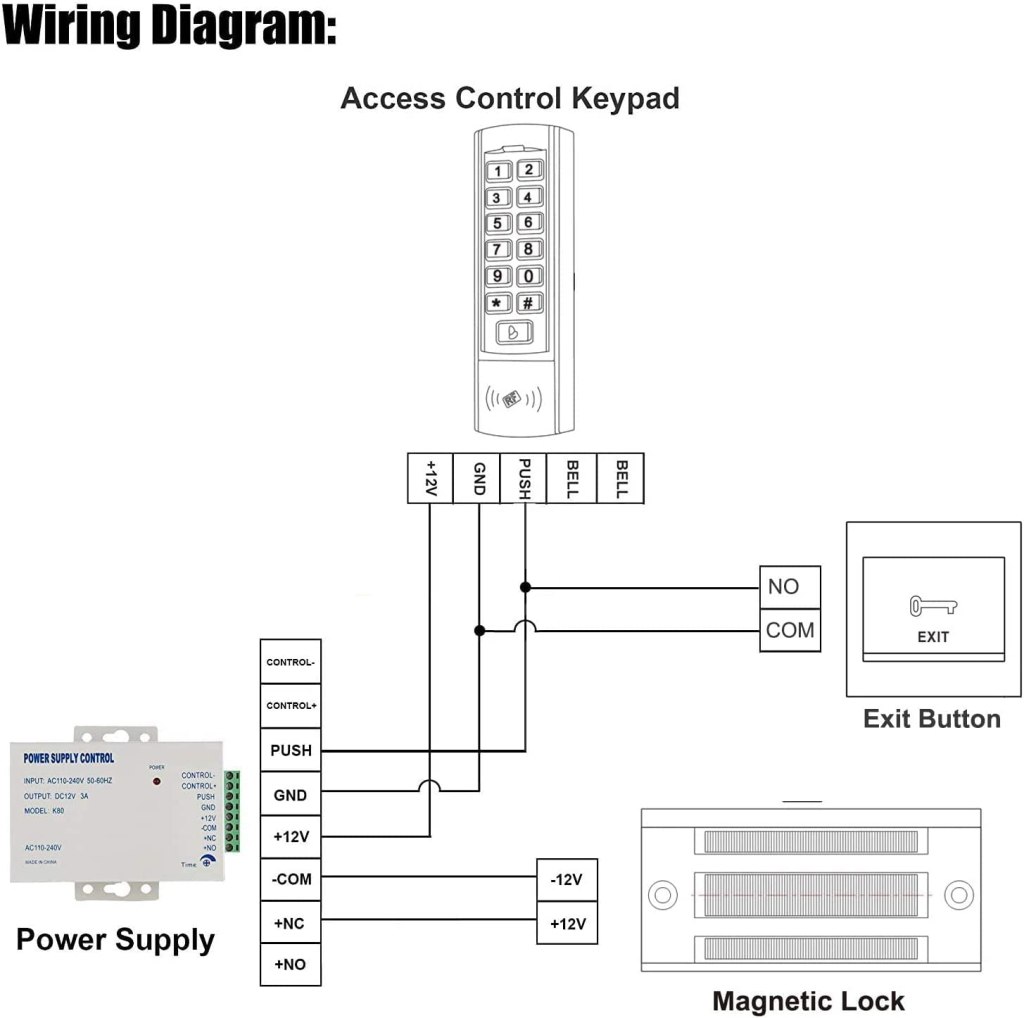

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
The door will be closed when power is on; when power off, the door will open.
It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc.
Specification:
Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force: 60kg/130lbs
Input Voltage: DC 12V / 24V (Optional)
Operating Temp: -10 ~ +55C (14-131F)
Operation Current: 100mA

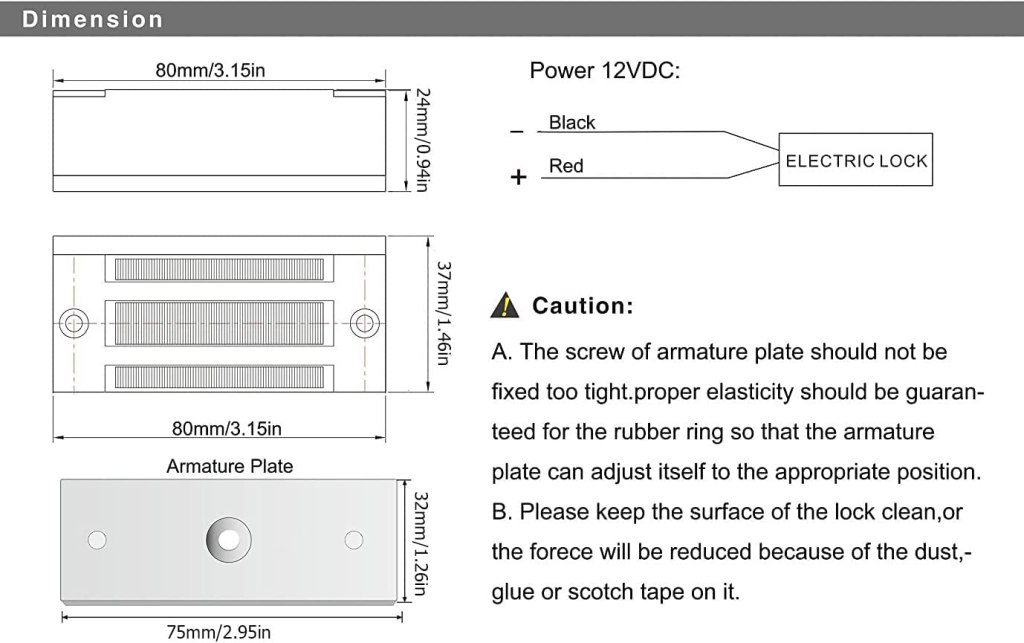

Size: 2.95L x 1.26W x 0.43H (in)/ 80L x 37W x 24H (mm)
Armature plate: 2.95L x 1.26W x 0.43H (in)/ 75L x 32W x 11H (mm)
Package Weight: Approx. 1.2lb (0.54KG)
Package list:
1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)
Additional information
| Input Voltage (DC) | 12V, 24V |
|---|
