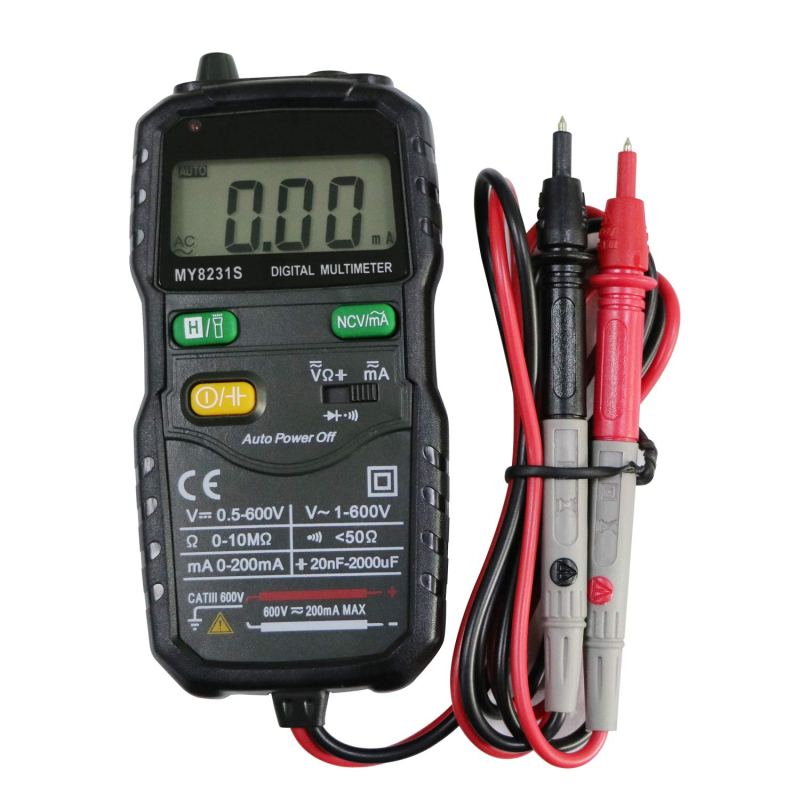

Mini Digital Multimeter,Portable Hand held Tester for Resistance Capacitance Auto Smart Detector
Digital Multimeter,Portable Hand held Tester for Resistance Capacitance Auto Smart Detector for Voltage, Current, NCV,Tester for Resistance Capacitance
Troubleshoots: automotive and household electrical problems safely and accurately
No-contact voltage detection. Accurately measures: voltage, DC current, resistance, diode, continuity and more

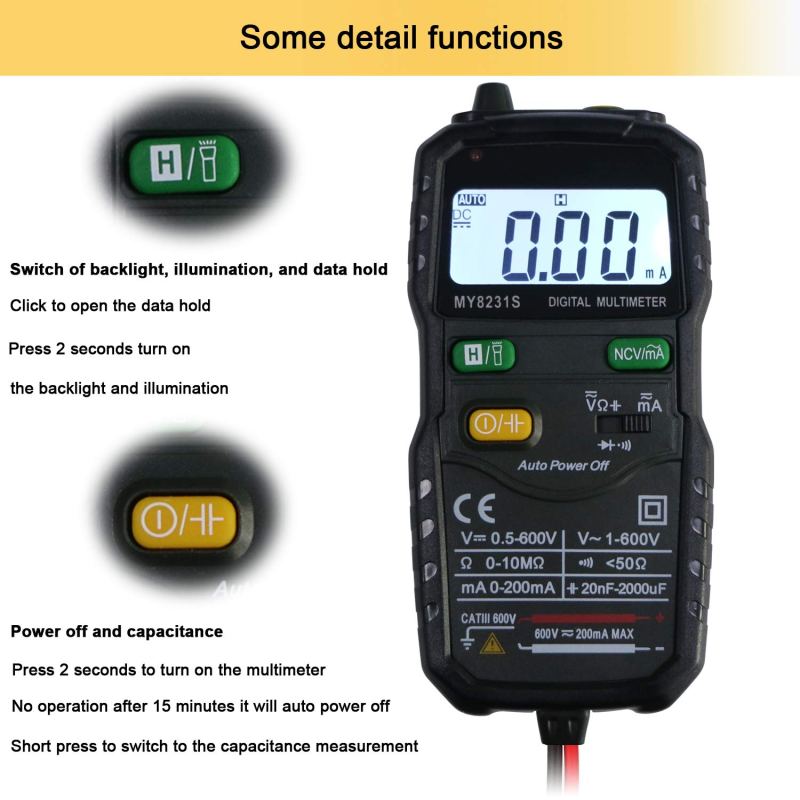

Ease of use: smart auto data hold and large digital display with backlit LCD for visibility in dimly light areas
Convenient with built-in kickstand for hand free use. Protective rubber cover guards for drop.
Don’t input voltage higher than 600V, It may damage the meter. more notice please check instruction on the package.
This digital Multimeter is designed and manufactured in accordance with the the safety requirements of IEC-61010. It meets the requirements of double insulation, 600V CAT III and pollution level 2 of IEC61010. Before using the Multimeter, please read the users manual carefully, otherwise the protection function may be reduced or invalid
The meter can measure DC voltage, AC voltage, DC current, AC current, resistance, diode, continuity and capacitance with non-contact voltage detection function to remind users operating safety, making the operation safer for users.
Operating environmental: 600 V CATMV and 1000VCAT.IIT Pollution level: 2
The altitude is <2000m.
Temperature and humidity of the working environment: 0 ~ 40C (<80% RH, when the temperature <10 ° C, it is not considered )
Temperature and humidity of storage environment: -10 ~ 60CC (<70% RH, remove the battery)
Maximum voltage can be allowed between the measuring terminal and the earth ground: 600 V DC or AC RMS
Protection of self-recovery fuse 200mA/265V
Sampling rate: about 3 times / sec
Display: LCD display in 31/2.
Overrange indication: The LCD will display “”OL””.
Indication of low voltage of battery: When the battery voltage is lower than the normal working voltage, “E3”’ will display
Indication of input polarity : The “”-“” sign is automatically displayed.
Power: 2×1.5V AAA battery

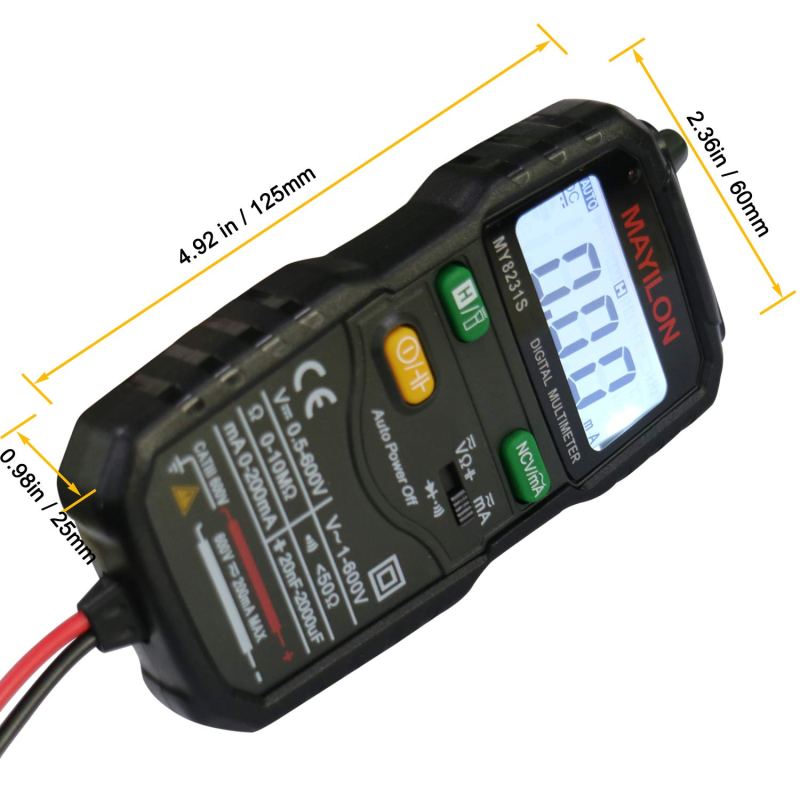

Dimensions: 128 x 61 x25
For more infor please check the instruction in the package.
