Digital Pen-Type Multimeter, Smart Voltmeter Ohmmeter for AC DC Voltage / Capacitance Resistance Continuity Diode / Phase Sequence

$17.99$25.99 (-31%)

In stock

【Multi-Parameter Measurement Multimeter 】Enter the Smart (Auto) mode by default, the digital multimeter automatically identifies and measures AC/DC Voltage, Resistance, and Continuity. It also tests Capacitance, Diode, Frequency, and Live Wire.
【Phase Sequence 】 Stands out with its unique phase sequence detection. When turn on the “PA” mode, the operator can detect whether the phase sequence is clockwise or anti-clockwise.

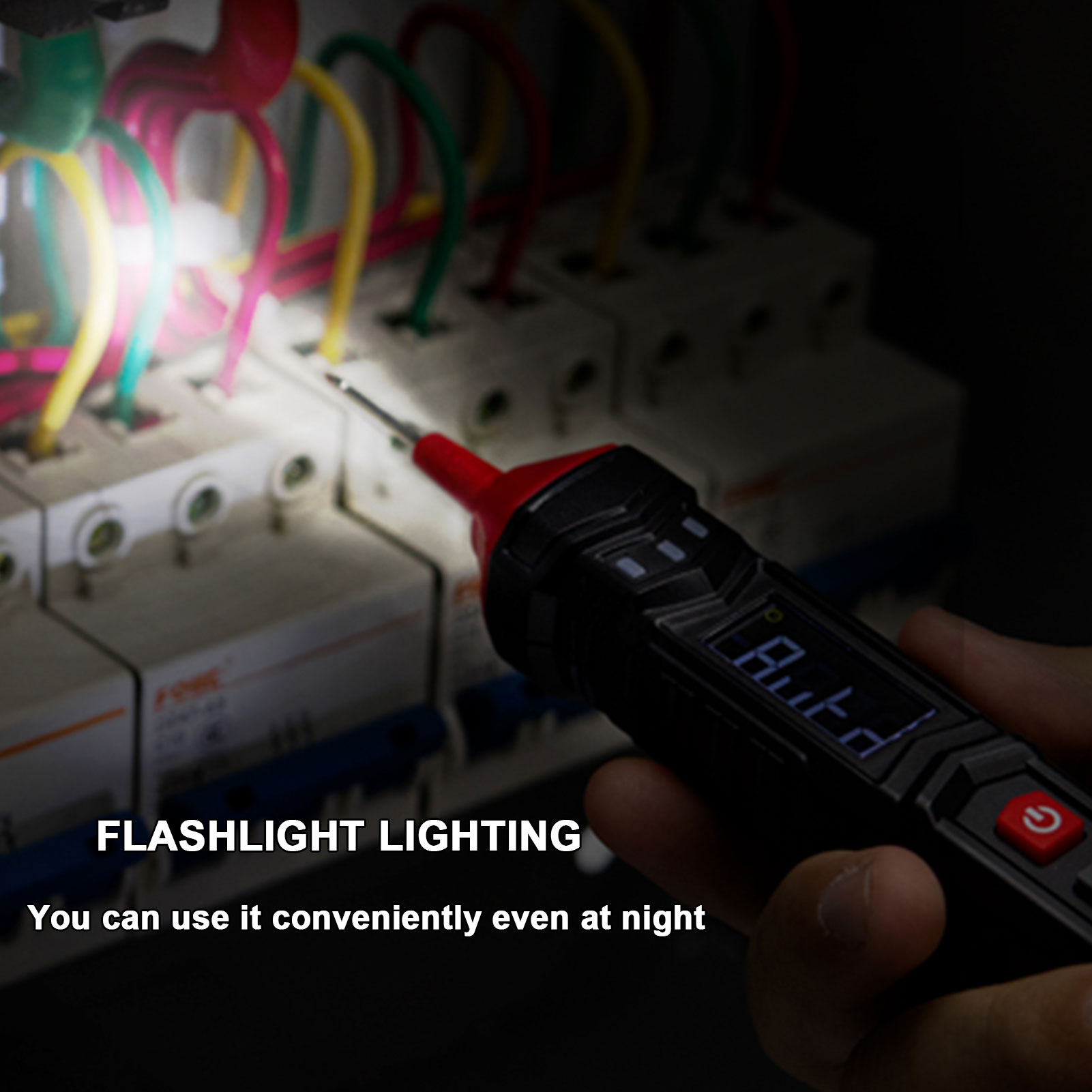

【Easy to Use】Switch measurement mode with button “Func” and hold data with button “H” . Backlight LCD screen ensures reading to be clearly seen in either dark or bright areas. The flashlight below the red probe helps you to work without concerns under dim light.

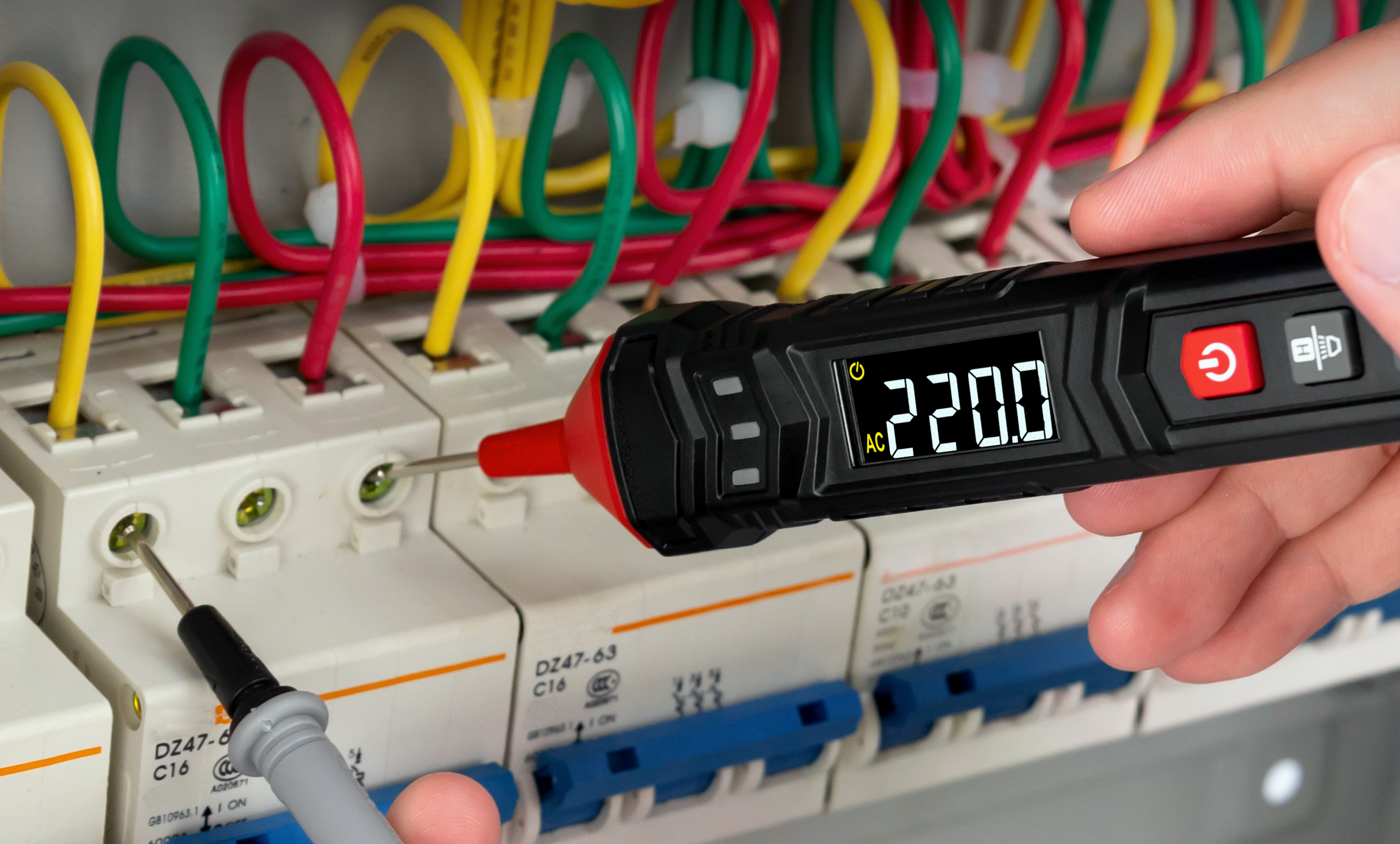

【Wide Application】 Industrial electrical safety measurements, household electric problems, vehicle and circuit inspection.

Compare
SKU: SVT00074 Category:

1. Mini pen multimeter, suitable for mobile phone repair, home repair, smart home repair, personal DIY repair, etc.
2. Equipped with special tip test pen, and negative fish clip line, suitable for precision motherboard repair, such as mobile phone motherboard repair, etc.
3. One machine with multiple functions, it is a multimeter, it is also a non-contact tester, and it is also a phase sequence meter

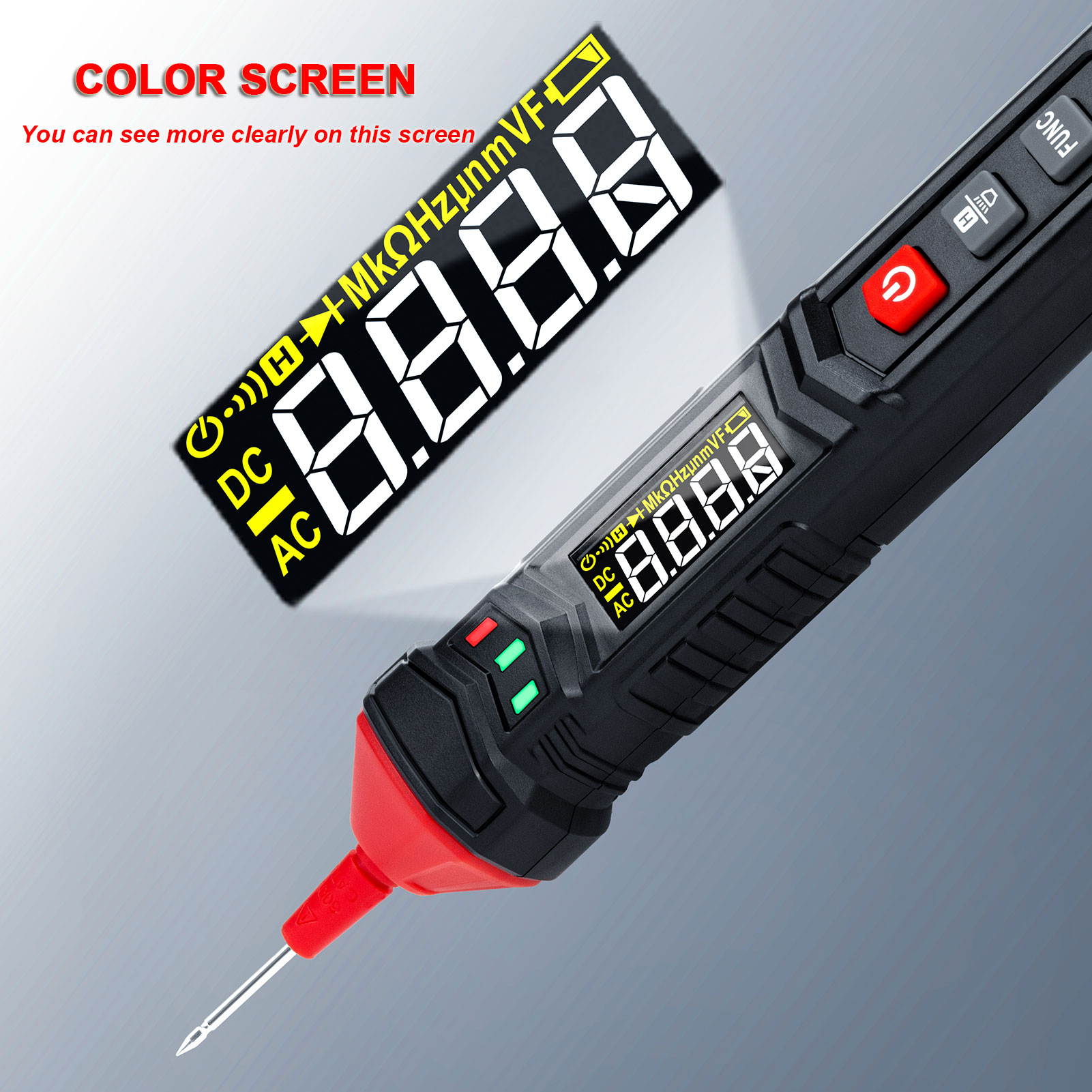

4.The VA reverse display screen can also display the displayed value in high-definition, data retention, color display is clearly visible in the dark environment, easy to find the line in the dark environment, to prevent electric shock.

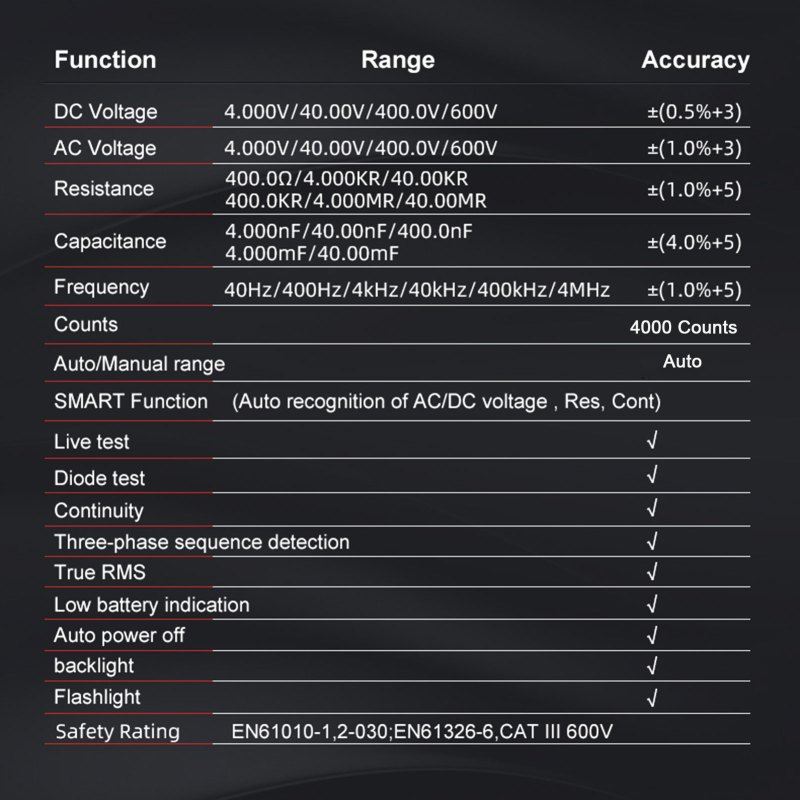

Product Details:

1, Environment condition of use: CAT. III 600V;Pollution level2, Altitude < 2000m
2, Working temperature&humidity:0~40°C(<80% RH,<10°C non condensing)
3, Storage temperature &humidity: -10~60°C(<70% RH, remove the battery)
4, Temperature coefficient:0.1 accuracy/°C(<18°C or >28°C)
5, MAX. Voltage between terminals and earth ground: 600V
6, Sampling rate: approx. 3 times /second.
7, Display: 4000 counts
8, Over range indication: “OL”.
9, Low battery indication: yes
10,Input polarity indication: yes
11,Continuity measurement: yes
12,Diode measurement: yes

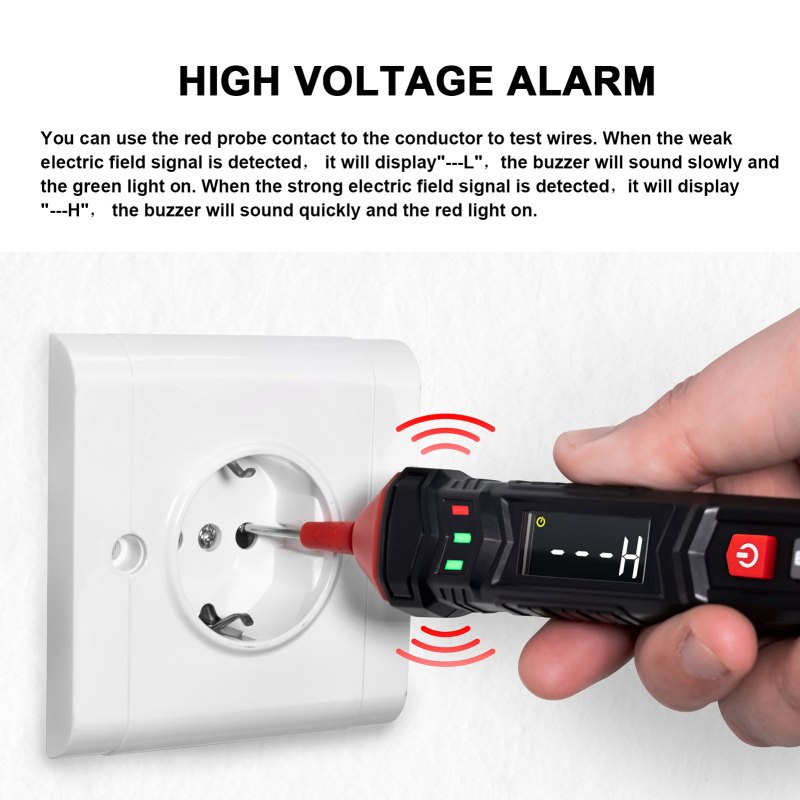

13,Live wire detecting: yes
15,Auto power off: yes
14,Phase sequence detection: yes
16,DC voltage: 4V, 40V, 400V, 600V, ±(0.5% +3)
17,AC voltage :4V, 40V, 400V, 600V, ±(0.8%+3)
18,Resistance:4000Ω,40KΩ,400KΩ,4MΩ,±(1.0%+5);40MΩ,±(1.5%+10)
19,Capacitance: 40nF,400nF,4uF ,40uF, 400uF, ±(4.0%+5); 4mF ±(5.0%+5)
20,Frequency: 40Hz, 400Hz,4KHz, 40kHz, 400kHz, 4MHZ,±(1.0%+3)
21,Power supply: 2 x 1.5V AAA batteries (not include)
22,Product Weight:Approx. 65g

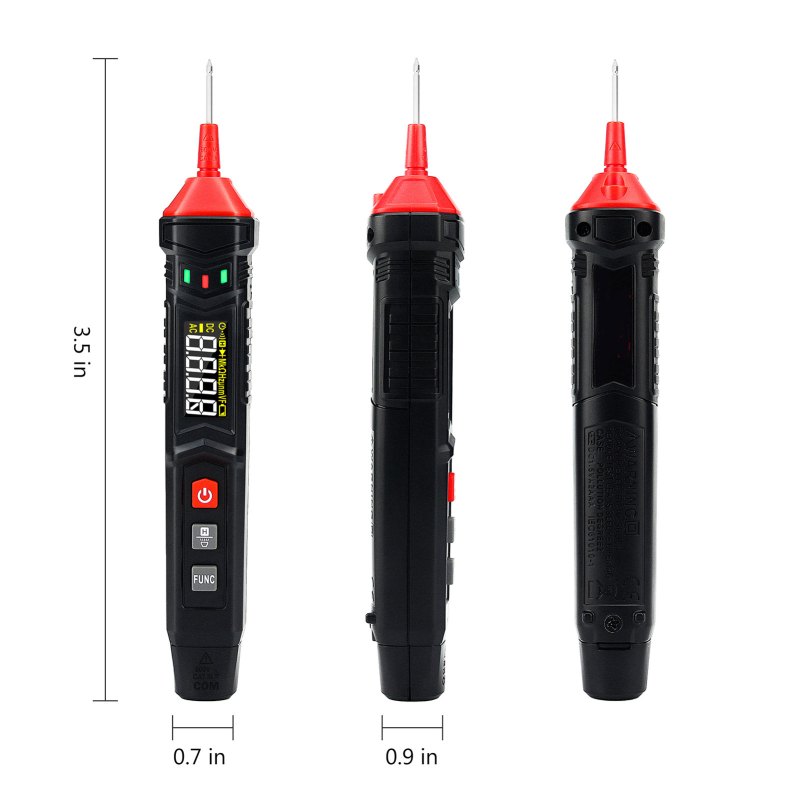

23,Product Size:195x29x29mm
24,Package Size:210x50x35mm
25,Package Weight:130g

Digital Pen-Type Multimeter, Smart Voltmeter Ohmmeter for AC DC Voltage / Capacitance Resistance Continuity Diode / Phase Sequence 12

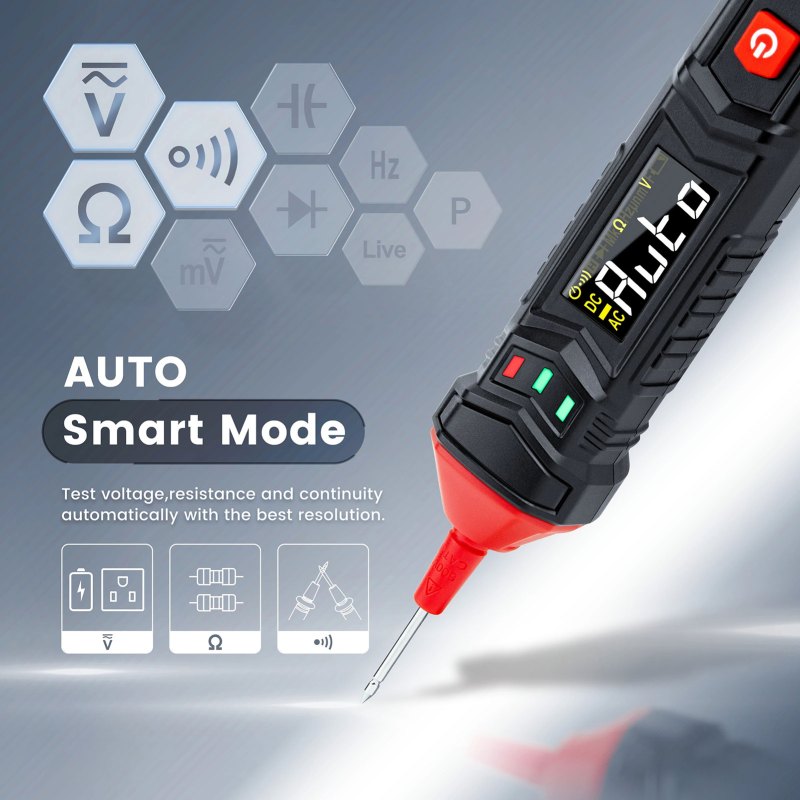

Smart Mode

Automatically identify the measurement signal, Automatically select the range

In this mode, the meter can automatically measure DC/AC voltage, Resistance, Continuity.

Easy to use:

   1)Press the power key to power on, display”Auto” and enter the smart measurement mode.

   2) Insert the black probe into the”COM” jack.

  3) Contact the probe with both ends of the measured subject or resistance parallel,and the meter will automatically recognize the measured signal.

  4) Read the results from the display.

Digital Pen-Type Multimeter, Smart Voltmeter Ohmmeter for AC DC Voltage / Capacitance Resistance Continuity Diode / Phase Sequence 13
Digital Pen-Type Multimeter, Smart Voltmeter Ohmmeter for AC DC Voltage / Capacitance Resistance Continuity Diode / Phase Sequence 14
Digital Pen-Type Multimeter, Smart Voltmeter Ohmmeter for AC DC Voltage / Capacitance Resistance Continuity Diode / Phase Sequence 15
