AC Digital Meter AC 80-260V 100A Current Voltage Power Energy Panel Monitor Detector LCD Digital Display Ammeter Voltmeter Multimeter with Split Core Current Transformer CT
OVERLOAD ALARM FUNCTION: Backlight and power will flash simultaneously to give an alarm if active power value exceeds the preset value. Alarm value can be set by yourself, but applied load should not exceed the rated power. This AC digital meter is suitable for indoor, please do not use outdoor.
POWER-OFF DATA STORAGE FUNCTION: The last test data is stored automatically when the power supply abruptly lose. This digital meter can only measure the Active Power but not Apparent Power. If you measure power from a DC-AC inverter, please make sure it’s PURE SINE WAVE, or the meter can be burnt or melted.
This AC meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.
1. Electrical parameter measurement function: Voltage, Current, Active Power, Energy, Frequency, Power Factor.
2. Overload alarm function: backlight and power are flashing to alarm if it is over power alarm threshold.
3. Power alarm threshold preset function: alarm value can be set by youself.
4. Backlight on/off function: short press the key to turn on or off the backlight, backlight has memory function.
5. Large-screen LCD: it can display six parameters clearly at the same time.
Power Factor: 0~1PF
Working Voltage: 80 ~ 260VAC
Voltage Test: 80 ~ 260VAC
Rated Power: 100A/22000W
Operating Frequency: 45/65Hz
Operating Temperature Range: 14℉~140℉/-10℃~60℃
Measurement Accuracy: 1%

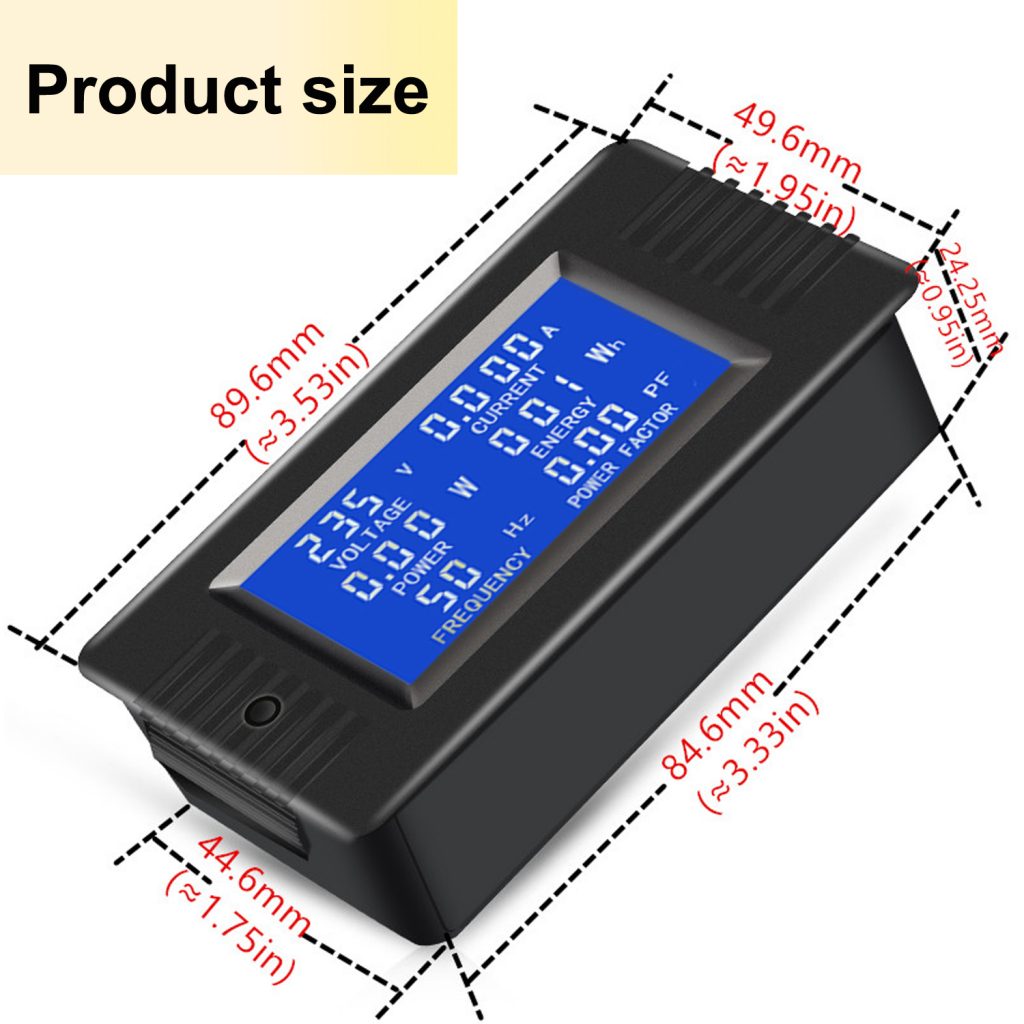

Dimension: 90×49.6x25mm/3.54×1.95×0.98 inch
Screen size: 51x30mm/2×1.18 inch
1. Please make sure the AC input is Pure Sine Wave. (Municipal electric power is pure sine wave). Please don’t use the meter to measure AC power converted from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave.
2. Applied load should not exceed the rated power.
3. Wiring order cannot be wrong.
4. This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.
5. This module is suitable for indoor applications, please do not use outdoors.
1x AC Digital Meter
1x 100A Split Core Current Transformer
